Connector

Frame (Index), No frame                 version:0.3(latest)

A straight line and polyline can be a connector which connects two shape objects. If an endpoint of a connector is moved toward a shape's boundary by the mouse drag, then then a red/blue mark will be displayed on the shape's boundary (Figure 1.1). And if the mouse button is released while the red/blue mark is displayed, then the connector will be connected to the shape's boundary very accurately.
The connection point (the red/blue mark) is represented by the Connection object which consists of the fields specifying the connector and the target shapes, and the two curve parameters representing the connection point. If the target shape is moved/resized or modified in the MoveResizeShapeLS or ModifyShapeLS object, then the connector manager (ConnectionUtil) moves the endpoints (connection points) of the connectors by referring the data of the Connection object and maintains the connections with the target shapes .
=> Connecting a connector in MoveResizeShapeLS, ConnectionLS Overview, User's guide Connector
One of the features of this application is that the connector can be connected to an arbitrary point on the a shape's boundary, and any number of connectors can be connected to the shape's boundary as shown in the Figure 1.1.

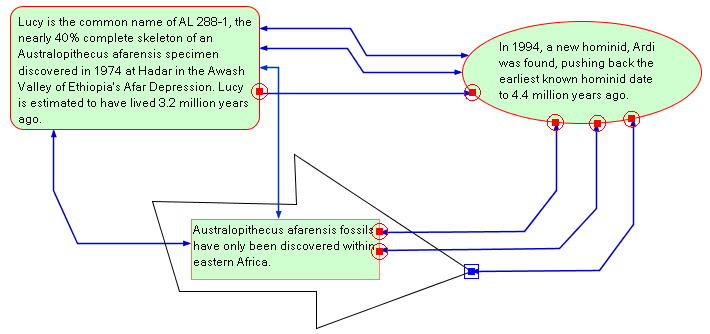

Figure 1.1 Sample drawing

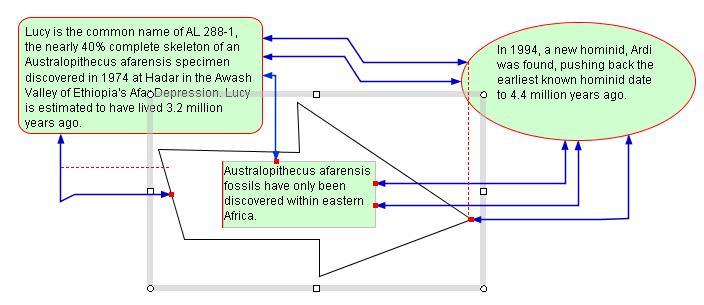

Figure 1.2 Maintaining the connection with the target shape.
The selected arrow-like-polygon was moved to the upper left from the initial position in Figure 1.1.
The small red marks represent the connection points.

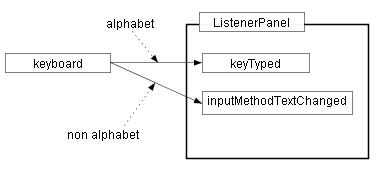

Figure_(a)	Figure_(b)
Figure_(c)	Figure (d)

Figure 1.3 Maintaining the connection with the shape.

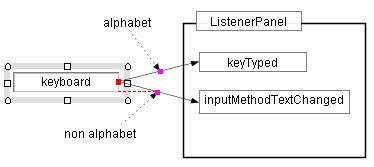

When the "keyboard" box is moved in Figure_(a), the connections (red marks) with the two solid lines are maitained and also the connections (pink marks) between the solid lines and the dotted lines are maintained (Figure_(b))
The set of Figure_(c) and (d) show an extreme case. The color marks represent the depth from the root node (the shape being moved) in graph.

When the connector manager (the ConnectionUtil object) moves the endpoints of connectors, the directions and positions of the connectors are constrained by the option (auto tracking option).

∙ free direction and free position: no constrain.
∙ keep x/y direction and position: preserves the direction of a connector, if the connector's direction is x or y.

Figure 1.4 shows the example how the connectors' endpoints and direction will be changed, if the rectangle is moved downward by the mouse drag (the red marks represent connection points).
Figure 1.5 and Figure 1.6 show typical examples such as bolck diagrams, flow charts etc. The "auto tracking option" may be very useful in these applications.

original Moves the rectangle downward	(a)option: free direction and free position The connectors change their directions freely.
(b) option: keep x/y direction and position The connectors don't change their directions.	(b) option: keep x/y direction and position If the target shapes is moved largly, then some x/y connectors change to polyline connectors.

Figure 1.4 Auto tracking option of connectors

Original	If the top rectangle is moved upward, then the line connector changes it direction. (a)option: free direction and free position		If the top rectangle is moved upward largely ,the line connector changes to a polyline connector. (b) option: keep x/y direction and position
	If the vertical line is moved upward, then the line connectors connecting to the line changes their directions. (a)option: free direction and free position		Although the vertical line is moved upward, then the line connectors connecting to the line doesn't changes their directions.　 (b) option: keep x/y direction and position

Figure 1.5 Typical example of the auto tracking optionof connectors -1

Original

If the right rectangle is moved downward, then the line connectors change their directions. (a)option: free direction and free position

If the right rectangle is moved downward largely, then some line connectors change to polyline connectors. (b) option: keep x/y direction and position

Figure 1.6 Typical example of the auto tracking optionof connectors - 2

Moves the vertical line to the right with holding down the Ctrl key.	The connections (red marks) can be preserved.

Figure 1.7 The effect of the Ctrl key

Method	Description
Constructor	public Connection(ShapeContainer connector, ShapeContainer target, double connectorParameter, double targetParameter) Sets the parameters to the corresponding field.
getTarget	public ShapeContainer getTarget() Returns the target field.
getConnector	public ShapeContainer getConnector() Returns the connector field.
getTargetParameter	public double getTargetParameter() Returns the targetParameter field.
getConnectorParameter	public double getConnectorParameter() Returns the connectorParameter field.
getTargetPT	public Point2D getTargetPT() Returns the connection point on the target shape boundary.
getConnectorPT	public Point2D getConnectorPT() Returns the connection point on the connector.
equalsInNormalData	public boolean equalsInNormalData(Connection connection) Parameters: connection - The Connection object to be compared. Processing: Returns true if each field of this this object equals that of the connection parameter.
equalsInReversedData	public boolean equalsInReversedData(Connection connection) Parameters: connection - The Connection object to be compared. Processing: Returns true if each field of this object equals each opposite field of the connection. In other words, compares the connector field of this object with the target field of the connection, compares the target field of this object with the connector field of the connection, compares the connectorParameter field of this object with the targetParameter field of the connection, and finally compares the targetParameter field of this object with the connectorParameter field of the connection.
getErrorDistance	public double getErrorDistance() Returns the numerical error between the connection point on the target shape and that on the connector.
closeToMouseHitShape	private boolean closeToMouseHitShape(MouseHitShape mouseHitShape) Parameters: mouseHitShape - The MouseHitShape object containing the mouse position and an ShapeContainer. Returns: Returns true, if the target shape of this object equals the shape in the mouseHitShape and the endpoint of the connector of this object is close to the mouse position of the mouseHitShape. => The problem of connector
resizeConnector	private void resizeConnector(Point2D oldPoint, Point2D newPoint) Parameters: oldPoint - The current endpoint the connector. newPoint - The new endpoint the connector. Processing: This method updates the endpoint of the connector from oldPoint to newPoint. To do this, the method calls the ShapeElement.moveEndpoint method.
resizeTarget	private void resizeTarget(Point2D oldPoint, Point2D newPoint) Parameters: oldPoint - The current endpoint the target. newPoint - The new endpoint the target. Processing: This method updates the endpoint of the target (line/open polyline) from oldPoint to newPoint. To do this, the method calls the ShapeElement.moveEndpoint method.
toString	public String toString() Returns the string representing this object.
isConnectorType (static)	private static boolean isConnectorType(ShapeContainer connector) Returns true if the shape denoted by connector has the qualification of the connector.
isTargetType (static)	private static boolean isTargetType(ShapeContainer target) Returns true if the shape denoted by target allows to be connected with a connector.

Method	Description
start	public void start(int mode, MousePositionInfo mousePositionInfo, ShapeContainer[] selectedContainers) • Sets the arguments to the corresponding fields. • Call the setTargets method of this class. : This method is implemented in order to avaid that the MoveResizeShapeLS.init method becomes too complicated and called from the MoveResizeShapeLS.init method.
end	public void end()
mouseDragged	public void mouseDragged(MouseEvent e) • Moves the end point of a connector(line/polyline). Checks that the end point of a connector can be connected other shape boundary. If it can be connected, sets the connected field true (Moving/Resizing shape Fig. 2.1, 2.2). • When a shape is moved, the connectors connecting to the moving shape are transformed to keep their connections by calling the resizeConnectors method of this class. : This method is implemented in order to avaid that the MoveResizeShapeLS.mouseDragged method becomes too complicated and called from the MoveResizeShapeLS.mouseDragged method.
mouseReleased	public void mouseReleased(MouseEvent e) • mode=Command.MOVING_ENDPT_MODE If the connected field is not true, calls the resizeConnectors method of this class. • mode=Command.MOVE__MODE/RESIZE__MODEの Calls the resizeConnectors method of this class unconditionally. : This method is implemented in order to avaid that the MoveResizeShapeLS.mouseReleased method becomes too complicated and called from the MoveResizeShapeLS.mouseReleased method.
setTargets	public void setTargets(ShapeContainer[] targets) Parameters: targets - The target shapes to be moved or resized. The targets[i] can be a group of shapes. Processing: This method decomposes each of the targets to single shape ShapeContainer objects (ShapeElement Figure 11.1 ) by the ShapeContainer.getGroupedSingleShapeContainers method and stores them to to the targetElements. Next, this method calls the setConnectors method to list up the connectors which connect to the listed target shapes and registers their ConnectionContainer objects to the ConnectionList. : If the listed connectors are connected with other connectors, calls the setConnectors method repeatedly until the listed connectors are not connected with any other connector (Depth, TargetList, ConnectionList)
setConnectors	private ShapeContainer[] setConnectors(int depth, ShapeContainer[] targetElements) Parameters: depth - The depth of targetElements from the root nodes (the target shapes of depth-0) in tree structure (Depth, TargetList, ConnectionList). targetElements - The shape (ShapeContainer) objects to which all the existing connectors are tested to connect or not. Returns: The connector (ShapeContainer) objects which connect to the targetElements. Processing: ∙ First, this method creates a new TargetContainer object with the parameters of the targetElements[i] and depth, and add the TargetContainer object to the TargetList. ∙ Next, this method calls the findConnectors method to search connectors which connect to the targetElements . The findConnectors method returns the Connection objects representing the connections with the targetElements. Each of the returned Connection objects is set to a new ConnectionContainer object, and the new ConnectionContainer object is registered to the ConnectionList, if the connector in the Connection object doesn't match to the connector in the mouseHitShape. Here the id of the new ConnectionContainer is "connector". This matching test is done by the closeToMouseHitShape method. ∙ Finally, this method collects the connectors from the Connection objects returned from the findConnectors, and returns the connector.
findConnectors	private Connection[] findConnectors(ShapeContainer target) Parameters: target - The target shape object. Returns: Returns the Connection objects which represent the connections between the target and connectors connecting to the target. Processing: This method is called by the setConnectors method. This method tests for all the existing connectors whether or not the endpoints of the each connector is lying on the boundary of the target shape within the given error margin (1e-2 pixel). To do this test, this method uses the Curve2DUtil.getShortestLine method.
setGuideLines	private void setGuideLines() This method is called from the setTragets method. This method finds a guide line (Figure 1.7) for each of the targets with depth-0 which are registered in the TargetList. To find a guide line, this method calculates the shortest distance from an endpoint of each of the targets to an existing connector by the Curve2DUtil.getShortestLine method. If the shortest distance is lower than the predefined margin, then the guide line is found. If the guide line is found, then creates a Connection object representing the connection between one of the targets and the guide line. And sets Connection object to a new ConnectionContainer object, and registers the new ConnectionContainer object to the ConnectionList. Here the id of the new ConnectionContainer is "guide_line".
printTargerList	private void printTargerList(String message) Prints the TargetList.
printConnectionList	private void printConnectionList(String message) Prints the ConnectionList.
getTargets	private ShapeContainer[] getTargets(int depth) Parameters: depth - The depth of from the root nodes (the target shapes to be moved/resized) in tree structure (Figure 3.1). Returns: The ShapeContainer objects which are stored in the TargetList as TargetContainer objects and whose depth equals the parameter depth.
getTargetIndex	private int getTargetIndex(ShapeContainer target, int depth) Parameters: target - The target shapes (ShapeContainer objects) to be moved/resized. depth - The depth of from the root nodes (the target shapes to be moved/resized) in tree structure (Figure 3.1). Returns: Returns the index of the target of the depth in the TargetList.
getConnection Containers	private ConnectionContainer[] getConnectionContainers(String id, int depth, ShapeContainer target, ShapeContainer connector) Parameters: id - The string id which is set to the ConnectionContainer. Currently, "connector" and "guide_line" are used for id. depth - The depth of from the root nodes (the target shapes to be moved/resized) in tree structure. if depth<0, then ConnectionContainer objects in any depth must be checked. target - The ShapeContainer object which is compared with Connection.target in ConnectionContainer objects. connector - The ShapeContainer object which is compared with Connection.connector in ConnectionContainer objects. :The target or the connector can be null. Returns: The Connection object of the ConnectionContainer whose　target equals target, whose connector equals connector and the id of the ConnectionContainer equals id.
getConnection Containers	private ConnectionContainer[] getConnectionContainers(String id, ShapeContainer target, ShapeContainer connector) Processing: Calls the above method as follow. return getConnectionContainers(id, -1, target, connector);
getSameConnection Container	private int getSameConnectionContainer(ConnectionContainer connectionContainer) paremeters: connectionContainer - The ConnectionContainer object. Returns: The index of the connectionContainer in the ConnectionList. Returns -1, if the ConnectionList does not contain the connectionContainer. The matching test of the connectionContainer with a ConnectionContainer object in the ConnectionList is done by the equalsInNormalData and equalsInReversedData methods of the Connection.
getConnectors	public ShapeContainer[] getConnectors(String id) Retrieves the ConnectionContainer objects specified by id from the the ConnectionList, gets connectors from the the ConnectionContainer objects and returns the connectors as an array.
getTargetsAnd Connectors	public ShapeContainer[] getTargetsAndConnectors() Returns the connectors and the target shape objects.
resizeConnectors	public void resizeConnectors(int option) Parameters: option - Command.FREE_DIRECTION, KEEP_XY_DIRECTION, KEEP_DIRECTION or TO_NEAREST_PT Processing: ∙ Resizes the connectors of depth n (n=1,2,...) Gets the connectors of depth-n by the getTargets method and resizes them by the resizeConnectors method. : This method is called by the following methods. ∙ The mouseDragged and mouseReleased methods of the MoveResizeShapeLS. ∙ The mouseDragged method of the ModifyShapeLS
resizeConnectors	private void resizeConnectors(int option, int depth, ShapeContainer[] connectors) Parameters: option - Command.FREE_DIRECTION, KEEP_XY_DIRECTION, KEEP_DIRECTION or TO_NEAREST_PT depth - The depth of from the root nodes (the target shapes to be moved/resized) in tree structure. connectors - The connectors (ShapeContainer objects) to be resized. Processing: This method calls the resizeConnectorByCurveParameter, resizeConnectorKeepingDirection or resizeConnectorToNearestPT method of the Connection according to the option parameter.
resizeConnectorBy CurveParameterr	public void resizeConnectorByCurveParameter() This method is called by the resizeConnectors method of the class. This method is used for moving the endpoint of the connector to maintain the connection with the target shape when the target shape is moved or resized. The endpoint of the connector is moved under the condition that the curve parameter (targetParameter) of the connection point shouldn't change. To move the end point of the connector, this method calls the resizeConnector method of this class.
resizeConnectorTo NearestPT	public void resizeConnectorToNearestPT() This method is called by the resizeConnectors method of the class. When the target shape is largely changed, for example, a node point of a polyline/a cubic curve is deleted, this method moves the endpoint of the connector to the nearest point on the boundary of the target shape. Here, the nearest point is calculated by the ShapeElement.getSamplingCurvePTs method. To move the end point of the connector, this method calls the resizeConnector method of this class. : In this method, the target shape itself is changed, so the targetParameter must be changed to represent a new connection point.
resizeConnector KeepingDirection	public boolean resizeConnectorKeepingDirection (ConnectionContainer connectionContainer) Parameters: connectionContainer - The ConnectionContainer object that represents a connection with a target shape and a connector. Return: True if resizing of the connector succeeds. If the projection point doesn't exist on the the boundary the target shape, then resizing of the connector will fail (see the figure below). In this care this method returns false. Processing: This method is called by the resizeConnectors method of the class. This method is used to move the end point of the connector with keeping the connector's direction. The end point of the connector is moved to lie on the extension of the connector. So the new end point of the connector will be one of the intersection points between the extension of the connector and the boundary of the target shape. The intersection points are calculated by the projectionPT method of this class using the Curve2DUtil.getProjectionLines method. : In this method, the target shape itself is changed, so the targetParameter must be changed to represent a new connection point..

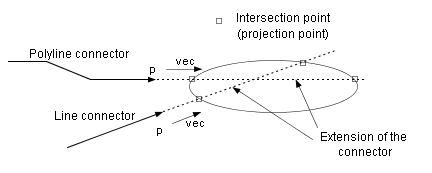

projectionPT	private CurvePT[] projectionPT(Point2D p, Vector2D vec, Curve2D targetCurve) Parameters: p - The point. vec - The projection vector. targetCurve - The boundary curve of the target shape. Returns: The CurvePT objects which represent the projection points of the p on the targetCurve. Processing: Calculates the projection points by the Curve2DUtil.getProjectionLines method.
selectCurvePT	private CurvePT selectCurvePT(ConnectionContainer connectionContainer, CurvePT[] curvePTs) Parameters: connectionContainer - The ConnectionContainer object of a connection with a target shape and a connector. curvePTs - The returned values of the projectionPT method. Returns:: The selected CurvePT object. Processing: Returns the nearest curvePT object to the p along vec direction in the above figure.
isChangable	private boolean isChangable(ShapeContainer connector) <Parameters: connector - The connector. Returns:: Returns true if the line connector (connector) can be changed to a polyline conenctor, or if the polyline connector (connector) can be changed to a line conenctor. <Processing: Judges tru/false as follows. ∙ The connector that is originally a polyline can't be changed to a line connector. ∙ A x/y line connector can be changed to a polyline connector. ∙ The polyline connector that was changed from a line connector can be changed to a line connector. (a) Original Moves the ellipse downward. (b) The line connector is changed to a polyline connector. (c) Moves the ellipse upward, then the polyline connector returns to a line connector. (c) Moves the ellipse upward largely, then the line connector is changed to a polyline connector again.
changeToPolyline Connector	private void changeToPolylineConnector(ConnectionContainer connectionContainer) Parameters: connectionContainer - The ConnectionContainer object. Processing: Changes the line connector in the connectionContainer to a polyline connector.
changeToLineConnector	private void changeToLineConnector(ConnectionContainer connectionContainer, CurvePT curvePT) Parameters: connectionContainer - The ConnectionContainer object. curvePT - See the figure below. Processing: Changes the polyline connector in the connectionContainer to a line connector. Draws the dotted line from the polyline segment and calculates the intersection (projection) point (curvePT) by the projectionPT and selectCurvePT methods. Changes the polyline connector to the line connector that connects the round rectangle and the curvePT on the ellipse.
resizeTargetsBy GuideLines	public boolean resizeTargetsByGuideLines() Return: Returns true if the targets were moved and resized along guide lines. Processing: Move and resize the targets of depth-0 in the TargetList along guide lines by the Connection.resizeTargetKeepingDirection method.
resizeTarget KeepingDirection	public boolean resizeTargetKeepingDirection(ConnectionContainer connectionContainer) Parameters: connectionContainer - The ConnectionContainer object that represents a connection with a target shape and a connector. Return: True if resizing of the target succeeds. If the projection point doesn't exist on the the boundary the connector, then resizing of the target will fail. In this care, this method returns false. Processing: Performs the same processing as the above method for the target shape. To resize the target shape, calls the resizeTarget method.
selectCurvePT	private CurvePT selectCurvePT(Point2D p, Vector2D vec, CurvePT[] curvePTs) Parameters: p - The reference point to be used to select a CurvePT object. vec - The direction vector which shows the direction of a line connector or a polyline connector. curvePTs - The points on the target curve. Returns: The selected CurvePT object. Processing: Calculates the distances from p to curvePTs(projection points) in the direction specified by the vec and selects the minimum distance and the curvePT which achieves the minimum distance. This method is slightly different from the selectCurvePT method mentioned above. => The figure in projectionPT.
end	public void end() Terminates resizing or transforming connectors.
isXOrYvector	private int isXOrYvector(Vector2D vec) Returns: If the vec is a x/y direction vector, then returns 1/2 respectively, otherwise returns 0.
drawMark	private void drawMark(String id, String message, int depth, Connection connection) This method draws a color mark at the point specified by the parameter. Drawing is done by the DrawShapeUtil.drawTempShape.
drawMarks	private void drawMarks(String id, String message) This method draws color marks at the points specified by the Connection objects in the ConnectionList. Drawing is done by the DrawShapeUtil.drawTempShape.
clearMark	private void clearMark() Clears the all marks.
moveResize (static)	public void resizeContainer(ShapeContainer container, Rectangle2D oldBox, Rectangle2D newBox, boolean keepConnection, boolean undoSetup) Parameters: container - The ShapeContainer object to be resized. oldBox - The rectangle object before resized. newBox - The rectangle object after resized. keepConnection - If true, then keeps the connection with connectors. undoSetup - If true, then sets the undo setup for the container and the connector. Processing: Resizes the container so that the oldBox is transformed to the newBox. This method calls the ShapeElement.moveResize method. If the size of the oldBox is equal to the size of the newBox, then resize means move. : This method is used to resize the ShapeContainer without using the mouse drag.
moveEndPoint (static)	public static void moveEndPoint(ShapeContainer container, int movePtIndex, Point2D oldPoint, Point2D currentPoint, boolean keepConnection, boolean undoSetting) Parameters: container - The ShapeContainer object which endpoint is moved movingPtIndex - If the movingPtIndexequals 0, move the start point, otherwise move the end point. oldPoint - The old point of the moving point. currentPoint - The current point of the moving point. keepConnection - If true, then keeps the connection with connectors. undoSetup - If true, then sets the undo setup for the container and the connector. Processing: Move the end point of a line or a polyline. This method calls the ShapeElement.moveEndPoint. : This method is used to move a endpoint without using the mouse drag.

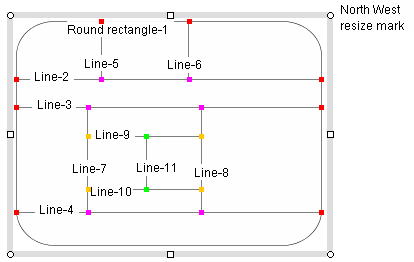

: Depth, TargetList, ConnectionList

Initial state	Moving the NW resize mark to upper right direction.
図3.1 Depth, TargetList, ConnectionList
TargetListとConnectionList * TargetList -- target=Round_Rectangle(No-1), depth=0 -- target=Line(No-2), depth=1 -- target=Line(No-3), depth=1 -- target=Line(No-4), depth=1 -- target=Line(No-5), depth=1 -- target=Line(No-6), depth=1 -- target=Line(No-5), depth=2 -- target=Line(No-6), depth=2 -- target=Line(No-7), depth=2 -- target=Line(No-8), depth=2 -- target=Line(No-9), depth=3 -- target=Line(No-10), depth=3 -- target=Line(No-11), depth=4 * ConnectiontList -- connection[0]: depth=0, target=Round_Rectangle(No-1), connector=Line(No-2), targetP=0.069, connectorP=0.0 -- connection[1]: depth=0, target=Round_Rectangle(No-1), connector=Line(No-2), targetP=4.931, connectorP=1.0 -- connection[2]: depth=0, target=Round_Rectangle(No-1), connector=Line(No-3), targetP=0.265, connectorP=0.0 -- connection[3]: depth=0, target=Round_Rectangle(No-1), connector=Line(No-3), targetP=4.735, connectorP=1.0 -- connection[4]: depth=0, target=Round_Rectangle(No-1), connector=Line(No-4), targetP=0.998, connectorP=0.0 -- connection[5]: depth=0, target=Round_Rectangle(No-1), connector=Line(No-4), targetP=4.002, connectorP=1.0 -- connection[6]: depth=0, target=Round_Rectangle(No-1), connector=Line(No-5), targetP=6.711, connectorP=0.0 -- connection[7]: depth=0, target=Round_Rectangle(No-1), connector=Line(No-6), targetP=6.262, connectorP=0.0 -- connection[8]: depth=1, target=Line(No-2), connector=Line(No-5), targetP=0.342, connectorP=1.0 -- connection[9]: depth=1, target=Line(No-2), connector=Line(No-6), targetP=0.679, connectorP=1.0 -- connection[10]: depth=1, target=Line(No-3), connector=Line(No-7), targetP=0.289, connectorP=0.0 -- connection[11]: depth=1, target=Line(No-3), connector=Line(No-8), targetP=0.727, connectorP=0.0 -- connection[12]: depth=2, target=Line(No-7), connector=Line(No-9), targetP=0.275, connectorP=0.0 -- connection[13]: depth=2, target=Line(No-7), connector=Line(No-10), targetP=0.784, connectorP=0.0 -- connection[14]: depth=2, target=Line(No-8), connector=Line(No-9), targetP=0.275, connectorP=1.0 -- connection[15]: depth=2, target=Line(No-8), connector=Line(No-10), targetP=0.784, connectorP=1.0 *) The targetP and connectorP represent the line/curve parameters on target and connector of the connection point.

: Problem of connector

Figure_(a) Four lines connecting the endpoints.

Figure_(b) Select the lower line and move its left side endpoint to upper, then the left side line automatically move its endpoint as a connector. Consequently the selected line can't be disconnect from others.

Figure_(c) Two lines connected to other lines at the endpoints.

Figure (d) Select the left side line and move its upper side endpoint to lower left, then the selected line can be disconnected from the upper line.
